Freeway

Self-hosted OpenAI-compatible gateway for free-tier LLM providers. Automatic failover, quota metering, context refit, two-tier caching, zero runtime deps.

Your apps point at http://localhost:8787/v1 and never see a provider key. When one free tier runs out, the next one takes over — mid-conversation, even if it has a sixteenth of the context window. Ask the same thing twice and the second answer is free.

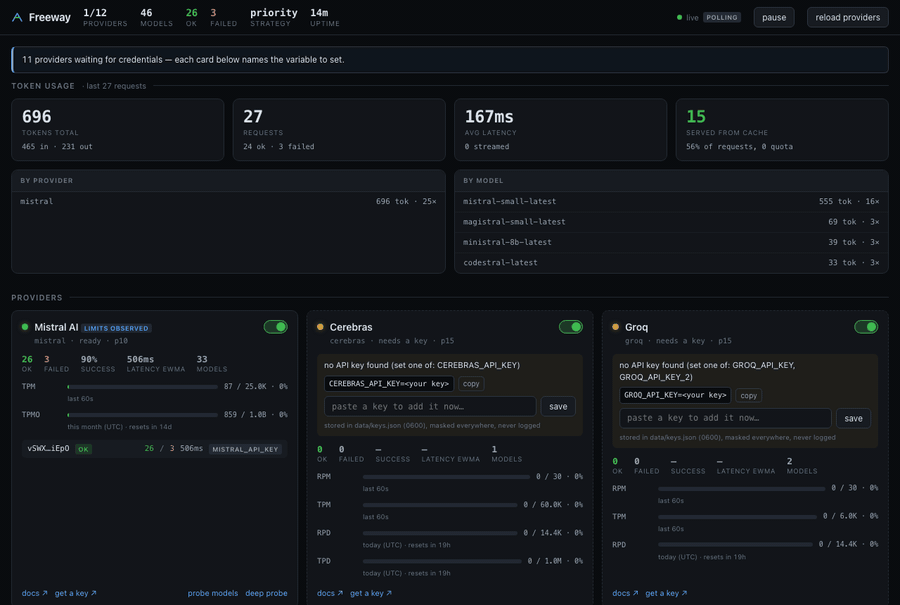

The dashboard, reacting to that same traffic:

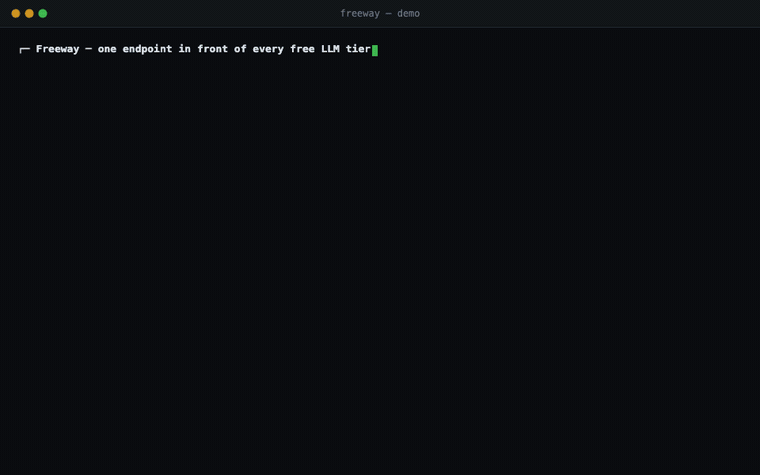

Both are real. The terminal is ./scripts/demo.sh; the dashboard is headless Chrome screenshotting the actual page via node scripts/record-dashboard.mjs, between real requests. Watch the token totals, cache hit rate and per-model counts climb — nothing is mocked up.

your app ──▶ Freeway ──┬──▶ Mistral        1B tokens/month
                       ├──▶ Cloudflare     10k neurons/day
                       ├──▶ Groq           30 rpm, very fast
                       ├──▶ Cerebras       1M tokens/day
                       └──▶ …8 more, each one JSON file

---

60-second quickstart

git clone <your-fork> freeway && cd freeway
npm install && npm run build

cp .env.example .env      # fill in whatever keys you have; none are required
npm start

Open http://localhost:8787 for the dashboard, then:

curl localhost:8787/v1/chat/completions \
  -H 'content-type: application/json' \
  -d '{"model":"auto","messages":[{"role":"user","content":"hello"}]}' -D-

HTTP/1.1 200 OK
x-freeway-provider: mistral          ← who served it
x-freeway-model: mistral-small-latest
x-freeway-route: auto                ← how the model string was resolved
x-freeway-attempts: 1
x-freeway-ms: 412

Or with Docker:

docker compose up -d

No keys yet? It still starts. Every provider shows up in the dashboard as a card telling you exactly which variable to set and where to get one.

---

Adding a provider

This is the headline feature, so it gets the headline section.

Adding a provider is one JSON file plus one environment variable. Never a code change. The gateway ships with twelve providers already written — most are just waiting for a key.

A provider that's already bundled

Set the variable and reload. That's the whole procedure.

echo 'GROQ_API_KEY=gsk_...' >> .env
curl -X POST localhost:8787/api/reload

Or paste it straight into the dashboard card — it writes data/keys.json at mode 0600, masks it everywhere, never logs it, and probes the key immediately to show you which models it can reach.

A provider nobody has heard of

node scripts/new-provider.mjs acme --url https://api.acme.ai/v1 --env ACME_API_KEY
export ACME_API_KEY=sk-...
node scripts/verify-provider.mjs acme

The verifier is the feedback loop:

1. file
  ✓ providers/acme.json parses
2. environment
  ✓ baseUrl resolves to https://api.acme.ai/v1
  ✓ 1 key in the pool: sk-l…xxxx (ACME_API_KEY)
3. live probe
  ✓ auth accepted (142ms)
  ✓ discovery found 3 models via /models → data[].id
4. limits
  ✓ observed from response headers: rpm=60, tpm=40000
  + rpm: file says null, provider reports 60 — consider recording it
5. suggested edits
  { "models": [...], "limits": {...}, "limitsSource": "observed" }

PASS — 0 problems, 0 warnings

Paste the suggestion in, re-run, done. Add --validate to send a one-token request per model and see which ones the key can genuinely reach. Add --json if you're an agent.

The file itself

{
  "id": "acme",
  "baseUrl": "https://api.acme.ai/v1",     // ${ENV_VAR} works here
  "auth": { "type": "bearer", "envKeys": ["ACME_API_KEY"] },
  "limits": { "rpm": 60, "tpm": null },    // null = unknown; NEVER guess
  "modelsPath": "data[].id",               // for non-OpenAI response shapes
  "models": [
    { "id": "acme-turbo", "alias": ["fast"], "context": 128000, "caps": ["chat", "tools"] }
  ]
}

Full walkthrough, including every escape hatch for odd providers: docs/ADDING-A-PROVIDER.md. Machine-readable contract: providers/_schema.json.

On null limits. A null means "unknown or unlimited" and is always better than a guess: the guard layer overwrites nulls with values read from the provider's own rate-limit response headers, so an honest null becomes accurate on its own. A wrong number never self-corrects. Mistral ships with null rps and tpm for exactly this reason — they stopped publishing them.

Bundled catalog

Provider	Free tier	Variable
Mistral	~1B tokens/month, phone verification	MISTRAL_API_KEY
Cloudflare Workers AI	10,000 neurons/day	CLOUDFLARE_ACCOUNT_ID + CLOUDFLARE_API_TOKEN
Groq	~30 rpm / 14.4k rpd, very fast	GROQ_API_KEY
Cerebras	~1M tokens/day	CEREBRAS_API_KEY
Google AI Studio	~15 rpm / 1500 rpd, multimodal · not in EU/UK/CH	GOOGLE_AI_API_KEY
OpenRouter	:free models only	OPENROUTER_API_KEY
GitHub Models	needs models:read scope	GITHUB_MODELS_TOKEN
Together	-Free models only	TOGETHER_API_KEY
Hugging Face	small monthly credits	HF_TOKEN
NVIDIA NIM	credits, not a free tier	NVIDIA_API_KEY
Scaleway	EU-hosted (Paris)	SCALEWAY_API_KEY
Ollama	your own machine	OLLAMA_HOST

---

Aliases

Point at a capability, not a vendor. Several providers sharing an alias is what makes failover work.

curl … -d '{"model":"fast", …}'      # whichever fast model is healthy
curl … -d '{"model":"auto", …}'      # anything that can serve this request

Model string	Meaning
auto, freeway, ""	any healthy chat model under quota
fast, cheap, big, code	aliases from freeway.config.json or a provider file
mistral/mistral-small-latest	pin one model
mistral/*	pin a provider, any model
llama-3.1-8b	fuzzy — finds @cf/meta/llama-3.1-8b-instruct

Model ids are split on the first slash only, so Cloudflare's @cf/meta/llama-3.1-8b-instruct survives being pinned.

---

Strategies

Set strategy in freeway.config.json or FREEWAY_STRATEGY.

Strategy	Picks	Use when
priority	lowest priority number first	you have a preferred provider (default)
round-robin	rotates between calls	you want to spread load evenly
least-used	emptiest quota window	you want to drain every free tier evenly
fastest	lowest EWMA latency	latency matters more than which provider

fastest uses optimistic initialisation — an untried provider sorts first so it gets sampled once and earns a real number, rather than never being tried.

---

Failover

Walks candidates up to maxAttempts (default 3). What gets benched depends on what went wrong, and getting this wrong is what makes key pools useless:

Upstream says	Blame	Effect
401, 403	the key	bench that key for 15+ min; the pool's others still serve
429	the key	bench that key for Retry-After; try the next key
5xx, timeout, network	the provider	bench the provider; skip its other keys
400, 404, 422	the request	return immediately — it fails identically everywhere

When nothing is viable you get a 429 whose body is the diagnosis:

{ "error": { "code": "all_providers_blocked" },
  "freeway": { "retryAfterMs": 23410, "blocked": [
    { "provider": "mistral", "reason": "tpm limit reached (500.0K/500.0K last 60s)" },
    { "provider": "cloudflare", "reason": "all 2 keys unavailable — cloudflare#0 (cf-t…9a21) cooling down for 24s: 429" }
  ]}}

---

Sessions and the context engine

Send a session id and only the new message. The gateway rebuilds the thread — and reshapes it to fit whichever model actually serves the call.

curl localhost:8787/v1/chat/completions -H 'content-type: application/json' -d '{
  "session": "proj-42", "model": "auto",
  "messages": [{"role":"user","content":"and now?"}]
}'

x-freeway-provider: cloudflare
x-freeway-model: @cf/meta/llama-3.1-8b-instruct
x-freeway-context: refit=compact tokens=41200->7100 kept=8 dropped=52 summaries=1

That's a 128k conversation continuing on an 8k model. The refit runs per candidate, after the router picks one — each has a different window, so a history that fit Mistral has to be reshaped again on failover.

The ladder escalates only as far as it must:

Rung	Does	Costs
passthrough	nothing; it already fits	—
drop-tool-noise	clears stale tool results, leaves a marker	free
window	keeps system + first turn + last N turns	free
compact	summarises the dropped middle	one LLM call, cached forever by range
hard-truncate	deterministic character-level cut	free, always terminates

Guarantees: the system message always survives; a tool call is never split from its result; the newest user message is never mangled — if it alone exceeds the window you get a 413 saying so. And if a summary comes back longer than what it replaced (a real failure mode), it's discarded and the ladder escalates.

Sessions are optional. Omit the id and it's a plain OpenAI endpoint.

---

Caching

Two tiers, and the point of both is the same: a hit costs no quota, no upstream call, and no time. On a free tier that is not an optimisation, it is extra headroom you did not have.

Tier	Default	Catches	Cost of a miss
exact	on (safe)	the identical request	nothing
semantic	off	the same question, worded differently	one embedding call

Exact tier

The key is a SHA-256 over a canonical form of everything that could change the answer:

messages · input · temperature · top_p · top_k · max_tokens · stop
tools · tool_choice · response_format · seed · presence_penalty · frequency_penalty

Canonical matters. Object keys are sorted before hashing, so two clients that serialise the same request in a different order still share one entry. Anything not on that list — user, tracing metadata, your own annotations — is ignored, because it cannot change what the model says.

The key is built from the resolution, not the raw model string. auto and fast resolving to the same model share a cache entry rather than each keeping their own copy.

safe mode, and why it is the default

"cache": { "mode": "safe" }   // "off" | "safe" | "aggressive"

safe caches only requests the provider would be expected to answer identically twice: temperature <= 0.2, or an explicit seed. A temperature: 0.9 call is supposed to vary — replaying one answer forever turns a creative endpoint into a broken record, which is worse than not caching at all. aggressive caches everything, including streams, when you know your workload is deterministic.

Semantic tier

Off by default, because every miss spends a real embedding call.

Turned on, it embeds the newest user turn through your own /v1/embeddings (so it routes and fails over like any other request), normalises the vector, and matches on cosine similarity above 0.92 — the threshold the GPTCache literature settles on for factual workloads.

Vectors live in one flat Float32Array with a parallel id array. Search is a linear scan of normalised dot products. 5,000 entries at 1,024 dims is about 20 MB and a scan is well under a millisecond, so a vector database would be a runtime dependency solving a problem this size does not have. The slab adopts its width from the first embedding it sees, so bge-large (1024) and bge-small (384) both work without configuration.

Entries are scoped, not global. The scope is a fingerprint of the resolved model set and the system prompt. Without that, a "you are a pirate" answer could be served under "you are a lawyer" — the same question genuinely has a different correct answer. A miss is also remembered for 60s, so an identical miss is not re-embedded twice.

Details that make it usable rather than merely present

• A cached stream is still a stream. Hits replay as SSE in 24-character frames with the usage block and trailing [DONE] intact, so a client rendering token-by-token cannot tell a hit from a live call.
• Hits are never metered. Counting them against a provider's quota would make the dashboard bars lie about what is left.
• Hits are logged distinctly — x-freeway-cache: exact|semantic, plus x-freeway-cache-score on a semantic hit, and a tile on the dashboard showing what fraction of traffic cost nothing.
• Eviction is TTL + true LRU. Ordering by millisecond timestamp looked fine and was wrong: entries written in the same millisecond tie, and eviction stops being least-recently-used. A monotonic access counter fixes it.
• Compaction summaries are cached too, keyed by the exact turn range they cover. Re-compacting a thread never pays for the same summary twice — the most expensive thing the context engine can do, done at most once.

"cache": {
  "mode": "safe",
  "ttlMs": 86400000,
  "maxEntries": 5000,
  "semantic": { "enabled": true, "threshold": 0.92, "model": "embed", "maxEntries": 5000 }
}

GET /api/cache reports hit rate, entries and tokens saved. DELETE /api/cache clears both tiers.

What it deliberately is not

The cache is shared across virtual keys. Two keys asking the same question share an entry — not a content leak, since the same question has the same answer, but x-freeway-cache: exact does reveal that someone asked it before. On a personal gateway that is the right trade; if it is not yours alone, set cache.mode: "off". There is no distributed tier and no cross-process sharing: one gateway, one sqlite file, on purpose.

---

Rate limiting and threat analysis

Piece	What it does
inbound limiter	per-virtual-key and per-IP rpm/tpm/rpd/concurrency. Stops one runaway app draining every free tier
quota forecasting	mistral: tpmo exhausted in ~4h at current burn — a trajectory, not a level
calibration	learns real limits from x-ratelimit-* headers and overwrites nulls
tier drift	flags a provider enforcing less than its file claims — a silently downgraded key
key health	re-probes every 6h: valid / revoked / forbidden / unreachable
content scanning	regex tripwires for leaked secrets, PII (Luhn-checked cards), and prompt injection

Scanning is flag by default and only blocks on high-severity findings even in block mode — failing a request over a stray email address would make the mode unusable. Findings store the match redacted; a scanner that logs the secret it found has done more damage than the thing it was watching for.

All of it surfaces at GET /api/alerts and in the dashboard's Alerts panel.

---

SDK

npm i @freeway/sdk

import { createFreeway } from '@freeway/sdk';
const fw = createFreeway({ baseUrl: 'http://localhost:8787/v1', apiKey: 'fw-…' });

await fw.chat('summarize this', { model: 'fast' });        // → string
const res = await fw.chat.raw({ model: 'auto', messages }); // → full response
res.route.provider;                                         // → 'mistral'

for await (const text of fw.streamText({ model: 'fast', messages })) process.stdout.write(text);
await fw.embed(['a', 'b']);                                 // → number[][]
await fw.models();

Already using the OpenAI SDK? Drop it in:

import OpenAI from 'openai';
const openai = new OpenAI(fw.openai());   // { baseURL, apiKey }

Errors carry the diagnosis:

catch (err) {
  if (err instanceof FreewayError) {
    err.blocked;        // per-provider reasons
    err.retryAfterMs;
    err.suggestions;    // on a 404
  }
}

---

Dashboard

http://localhost:8787 — one self-contained HTML file. No framework, no build step, no CDN (there's a test asserting it references nothing external).

Provider cards with health dots, EWMA latency, per-key state and masked keys · quota bars coloured by fill with reset countdowns · unconfigured providers shown as cards with the variable to set and a paste box · searchable model catalog · alerts panel · a live request log pushed over SSE, not polled — entries appear the instant a request completes, with failed attempts expandable.

---

Environment variables

Variable	Default	Meaning
FREEWAY_KEYS	empty	inference-only fw- keys apps present (/v1/*). Empty = open, and the gateway then refuses to bind anything but loopback
FREEWAY_ADMIN_KEY	—	full access (/api/*): stored conversations, provider credentials, config. Never give this to an app
FREEWAY_CORS_ORIGINS	empty	browser origins allowed to call the gateway. * is rejected
HOST / PORT	127.0.0.1 / 8787	bind address
FREEWAY_STRATEGY	priority	routing strategy
FREEWAY_ROOT	cwd	base for the paths below
FREEWAY_PROVIDERS	./providers	provider JSON directory
FREEWAY_DATA	./data	quota counters, sessions, cache, pasted keys
FREEWAY_CONFIG	./freeway.config.json	config file
provider keys	—	see .env.example

A .env file in FREEWAY_ROOT is read at startup. A real environment variable always wins over the file.

---

Exposing it

Read SECURITY.md first. The short version:

FREEWAY_KEYS=fw-app-one,fw-app-two   # one per app — inference only
FREEWAY_ADMIN_KEY=fw-admin-…         # separate, never given to an app

Then put TLS in front — Freeway speaks plain HTTP by design.

Inference keys reach /v1/* and nothing else. /api/* reads stored conversations and writes provider credentials, so it needs the admin key; with no admin key set it is allowed on loopback and refused everywhere else. Binding a public interface also switches on inbound rate limits automatically, and the gateway flatly refuses to bind one with no keys at all.

---

Development

./scripts/demo.sh                     # scripted walkthrough against your providers
node scripts/record-dashboard.mjs     # re-record the dashboard GIF
npm run build           # tsc --build, must be clean
npm test                # node:test across all workspaces
npm run smoke           # every route against mock upstreams — run this after adding a provider
npm run mock -- --port 9101 --name alpha   # a fake provider you control

scripts/mock-upstream.js is the reason all of this is testable without spending quota: scenario-scripted status codes, per-key behaviour, injectable rate-limit headers, SSE, and a POST /__control plane to re-script it mid-test.

Working on this with an AI agent? Start it at CLAUDE.md.

Zero runtime dependencies. Dev deps are typescript and @types/node. Everything else is node:http, node:sqlite, fetch, and node:test.

---

Out of scope

No user accounts, billing, multi-tenancy, external database, React frontend, or prompt templating. This is a personal gateway. If a users table appears, something went wrong.
